PoE touch screen panel PC or comfort control panels for HMI require low-cost, faster, better performance and functionality of machine-level interface used in Machine-to-Machine (M2M), Internet of Things (IoT), smart building automation, HVAC control, access control, room reservation, room scheduling, interactive security systems, interactive patient room information displays, as well as interactive scheduling systems in hotels, schools, government and hospitals.
The PoE technology features a system that safely transfers electrical power, along with data to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure, so deployment is simplified. The SIBO comfort control panel / wall mount touch screen thin clients offer a cost effective solution by bringing power and data transfer via a standard twisted pair Ethernet cabling in a network for faster time to market.
SIBOl POE panel displays can off normal material or aluminum material shell (Q896 and Q895)
SIBO Q896 Android Tablet PC RJ45 POE | Overview | Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard) | | What is PD and PSE? | | Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch) | | | In/Out | protocol | Application | PD
Power Device | Power Input
from Ethernet(RJ45) | Input | POE 802.3 AF(15.4W) | Home automation / Safety & protection | | POE 802.3 AT(30W) | | | Benefits: | | |  | PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction. |  | A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet. |  | Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure. |  | Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access. |  | Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt | | For smart home and control - IPS Screen (G+G glass)
- Android OS
- Inwall / Onwall version
- CBVS , HDMI, Serial port , GPIO , Uart interface
- No buttons design
- Slim Body with 3 Brackets for wall mounting
- Camera & Mic
- Support ROOT permissions for private application
- No battery design
- Auto power on
- 12V DC / 24V DC available for power
- Auto web application (one web page can be showed only on the screen)
- POE feature (IEEE 802.3 af)
| Model Number | Q896S | | Hardware Specs | Solution | Allwinner A83T 8-core Cortex™-A7 CPU | | CPU | ARM Cortex A7 8-Core, 1.2Ghz | | Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | | RAM | 2GB | | Nand Flash | 8GB | | | | Software Feature | System | Google Android 6.0.1 | | Video | H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | | Audio | Integrated 3W Amplifier (No Speakers, Only Speaker connector) | | Language | Support multi-languages | | | | Interfaces | Back | Ethernet Interface(RJ45) | | HDMI Out | | USB Socket | | CVBS IN | | DC IN Power Terminal | | UART, IO, 3W AMP OUT Available | | | | Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | | | LAN Port | Ethernet RJ45 | | | | Power Supply | DC IN | DC 9V -36V | | | | Boot Up | Auto Boot | Auto Boot Up When Power Supplies | | Software | Auto Run Web App |
Builtin HDMI (standard ) jack, Relay , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out
It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for security control and so on...
A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

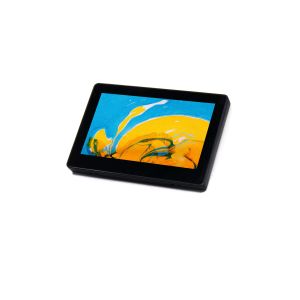

SIBO Q896 In Wall Android RS232 Tabl
SIBO Q896 In Wall Android RS232Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.
POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE LCD embedded touch LCD Android RS232 Android RS485 Android GPIO RS485 touch screen RS232 touch screen in wall LCD in wall touch screen Wall mounted touch screen Wall mounted Android display RS232 touch display RS485 touch display serial port display GPIO touch display POE display POE touch screen POE touch LCD Ethernet tablet Ethernet touch screen power over Ethernet screen Android POE flush mounting touch screen Wall Android RJ45 Android RJ45 tablet SIBO Q8 SIBO android screen SIBO home automation SIBO intercom SIBO Q899 desktop Android screen table screen intercom Android screen Tablet for smart home Tablet for home automation Android smart home POE Touch Screen Panel PC POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet POE powered Tablet POE LCD POE wall screen in wall Android screen Wall Tablet PC SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE powered tablet desk tablet GPIO tablet Android POE LCD POE LCD with RS232 POE LCD with RS485 POE LCS with serial port Android table with serial port Android serial port tablet GPIO LCD GPIO Android screen wall mount android tablet poe 7" android tablet poe SIBO POE tablet IEEE 802.3 AF POE tablet VESA tablet PC surface mounting tablet wall mount Android panel PC POE panel PC POE LCD android POE display Android home automation LCD smart home LCD SIP tablet SIP android home automation SIP door Android screen touch screen POE Android display with POE touch LCD with POE Video intercom tablet intercom tablet Echo cancellation tablet great sound tablet PC with power amplifier embedded tablet PC embedded Android RJ45 tablet PC Ethernet tablet PC Ethernet Android PC Ethernet Android display GPIO control RS232 Android control RS485 Android control Rugged tablet Solid tablet PC Industrial tablet PC smart building tablet smart building controller screen In Wall Android Tablet For Home Automation 9 Inch In Wall Flush Mount Android Tablet 7" RS485 Tablet with GPIO and CBVS 7" RS485 Tablet with GPIO and CBVS RS485 Android LCD RS485 Android screen RS485 HMI RS485 touch screen RS485 LCD Wall control pad Ethernet pad POE in wall controller Touchscreen Keypad for VoIP Intercom POE TOUCH PANEL PC Tablet Powered via Power-over-Ethernet 7" POE multi-touch screen RUGGED TOUCH MONITOR DISPLAYS wall mounted Android tablet with POE tablet LAN POE Tablet with POE and Ethernet connection HMI Android Panel PC 7" POE Panel PC POE Control Panel Touch Panel PC with Power over Ethernet POE IEEE 802.3 af tablet Flush Mount Android Tablet With Serial Port Tablet PC with TTL UART TABLET PC TTL control screen UART Android LCD Amplifier Tablet SIP Stack Tablet Wall Mounted Android Panel PC LAN Surface Mounting Wall Tablet PC 9" Wall Mounted Android Tablet with POE RS232 RS485 Wi-Fi 3G, RJ-45 Ethernet Port 7 Inch Android Tablet PC RJ45 POE Android POE Wall Mounted Tablet for Employee Time Clock In Wall Android POE LCD 7 Inch Wall Ethernet RJ45 Android Tablet 7inch Touch Panel PC Android In-wall Casing Wall Installation tablet Wall Mount Panel Computer android With Ethernet 3G WIFI Serial Port Rugged wall Android Touch Pad Wall Mounting Home Automation Controller POE Screen With RS232 RS485 Android Screen For Home Automation Control Wall Bracket Android Tablet PC With RJ45 POE RS232 tablet Industrial tablet with RS232 RS485 tablet PC Android Power over Ethernet TFT LCD touch displayer HMI with rs232 /TTL serial interface IP intercom tablet CVBS AV tablet AV in tablet HDMI tablet CBVS tablet IPS wall tablet wall IPS display Dual RS232 / TTL Android Tablet PC Dual TTL Tablet PC Double RS232 Tablet PC Tablet RS232 Tablet RS48
The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for home application and so on...
7 Inch Enhanced Tablet PC With RS232 / RS485 / PDesktop bracket and the mounting picture:
Flush mounting insalltion:
On wall mounting:
|
